Overview

This document provides an overview of managing IoT Systems, their Components, Datapoints, Setpoints, Events and Local API Tokens using MQTT APIs. It explains the key concepts, terminology, and prerequisites required to get started.

Terminology

Term	Definition	Our Usecase	Other Example
Slug	Organization identifier	company-example	smart-tech
PUB	Publish operation (send data)	Send commands to turn on a light	-
SUB	Subscribe operation (receive data)	Receive temperature readings from a thermostat	-
System	Primary IoT device or device group	Energy Management System	Smart Home Hub
Component	Individual connected sub-device	Smart Meter	Thermostat, Light Bulb
Event	Notification or alert triggered by a system or component	Overload Alert	Low Battery Warning
Event Model	A structured representation of events, triggered by a system or component	Overload Alert with timestamp and severity	Low Battery Warning with device ID and status
Service	A specific functionality provided by a system or component	Electricity Monitoring	Remote Lock Control
Characteristics	Attributes or properties of a component or service	Voltage, Energy Consumption	Brightness Level, Temperature
Component Model	A detailed schema defining the structure and behavior of a component	Smart Meter with energy usage and status	Thermostat with temperature range and mode
Setpoint	A target value or configuration for a system or component	Energy Consumption: 30w	Target Brightness Level: 75%
Datapoint	A single piece of data representing the state or measurement of a system or component	Voltage : 20V	Measured Energy Consumption: 5kWh
Local API Token	A token used for authenticating local API requests	abc123xyz	token_example_456

Prerequisites

Before diving into system usecases with MQTT API, ensure the following steps are completed:

1. Sign Up: Create an account through the DRIVR Customer Portal.
2. Create a Domain: Set up your unique identifier in DRIVR APIs.

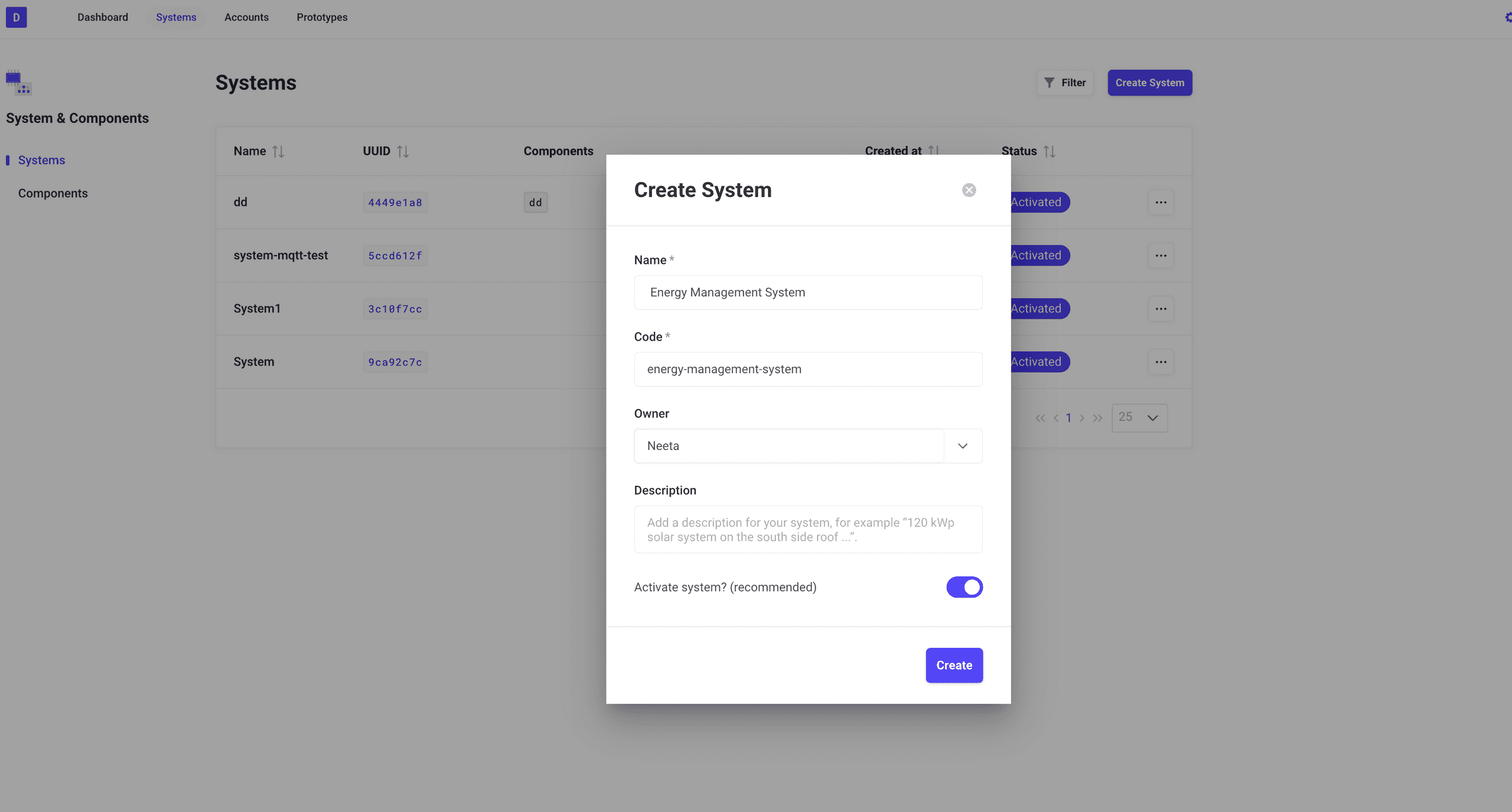

3. Create a System: Register your IoT device or device group. Follow the Create a System guide. For our usecase, we need an Energy Management System as a system.

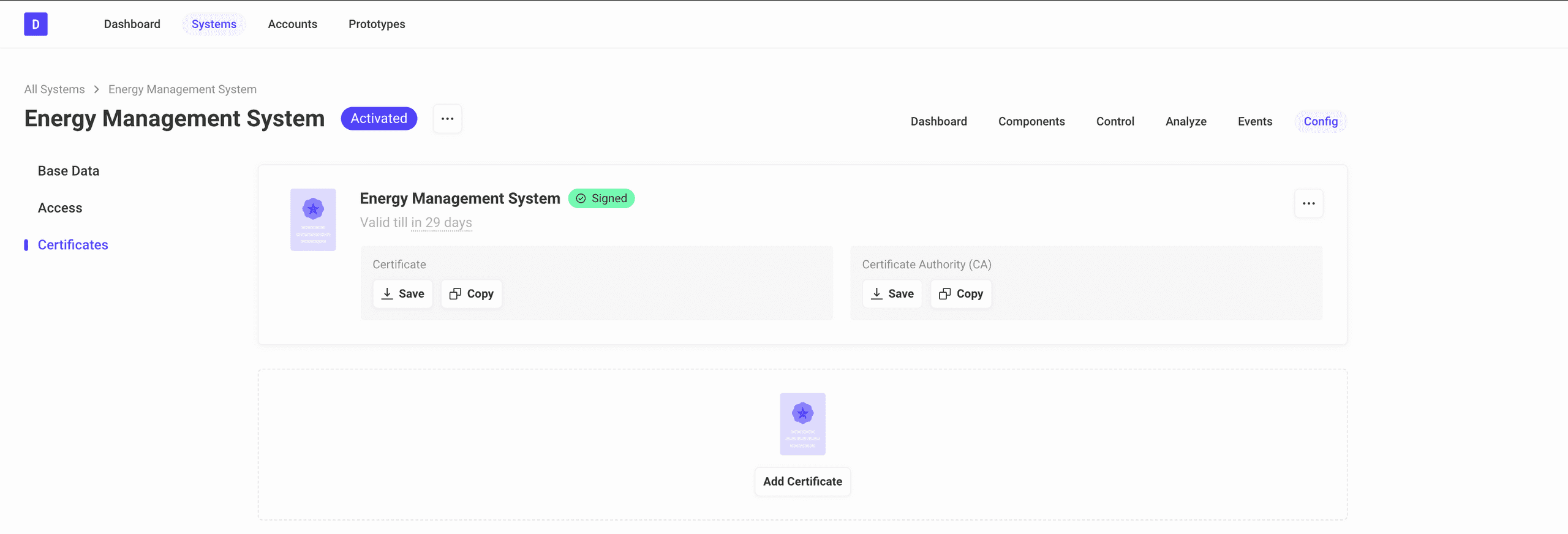

4. Generate MQTT Certificates: Secure communication with the DRIVR platform by generating MQTT certificates for your EMS System. Refer to the Certificate-Based Authentication - MQTT guide.



MQTT Client

NOTE: Replace client.key, certificate.pem, and ca.pem with the actual paths to your generated certificate files that you have created in the prerequisites.

You can use any MQTT client to interact with the DRIVR MQTT Broker. We recommend using MQTTX Client.

• Please install the application on your machine and use it to connect to the DRIVR platform as shown below:



• You can also use the command line interface (CLI) to connect to the MQTT broker. Below is an example of how to connect using the mqttx CLI:

  mqttx conn -h mqtt.drivr.cloud -l mqtts -p 8883 --key client.key --cert certificate.pem --ca ca.pem


Last Will and Testament for MQTT (LWT):

The Last Will functionality in MQTT is a feature that lets a client specify a message (the "Last Will and Testament" or LWT) when it connects to the broker.

If the client disconnects unexpectedly (for example, due to a network disconnect), the broker automatically publishes this Last Will message to a specified topic.

• Purpose:

  It notifies other clients that the client has gone offline or is unavailable, enabling better monitoring and fault detection in IoT systems.

• Example Use:

  A device can set its Last Will message to indicate "offline" status. If it disconnects abruptly, subscribers to the status topic will receive this message and know the device is no longer active.

For more details, see: Use of MQTT Will Message

Next Steps

Once the prerequisites are completed and you have selected the MQTT client, proceed to the actual usecases to learn how to manage systems, components, datapoints, setpoints and events in real-time using MQTT APIs.

RECOMMENDATION: Always subscribe (SUB) to the relevant topics before publishing (PUB) a request. This ensures you can immediately receive responses or updates on the SUB topic after sending a PUB request. Additionally, subscribing to error topics beforehand is highly beneficial, as it allows you to quickly identify and troubleshoot any issues that may arise during the process.
